Wiper/Washer Schematic

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

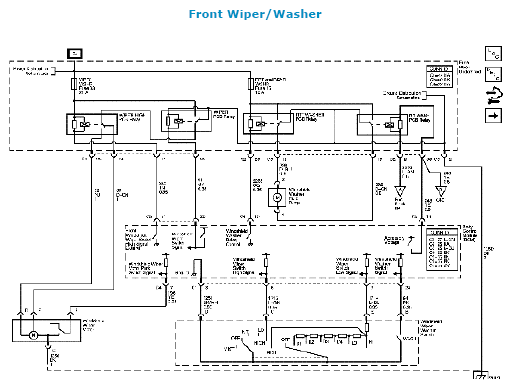

Fig 1: Identifying Front Wiper & Washer Schematics Circuit Diagram
G04845187Courtesy of SUZUKI OF AMERICA CORP.

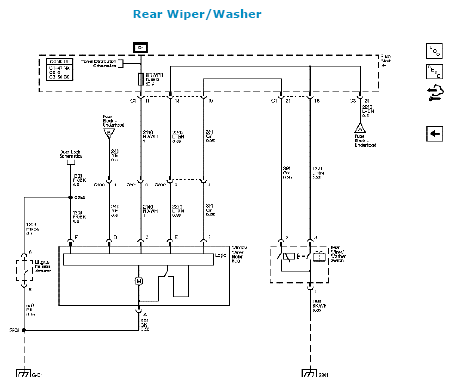

Fig 2: Identifying Rear Wiper & Washer Schematics Circuit Diagram
G04845188Courtesy of SUZUKI OF AMERICA CORP.
