Engine and Emission Control System Diagram

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

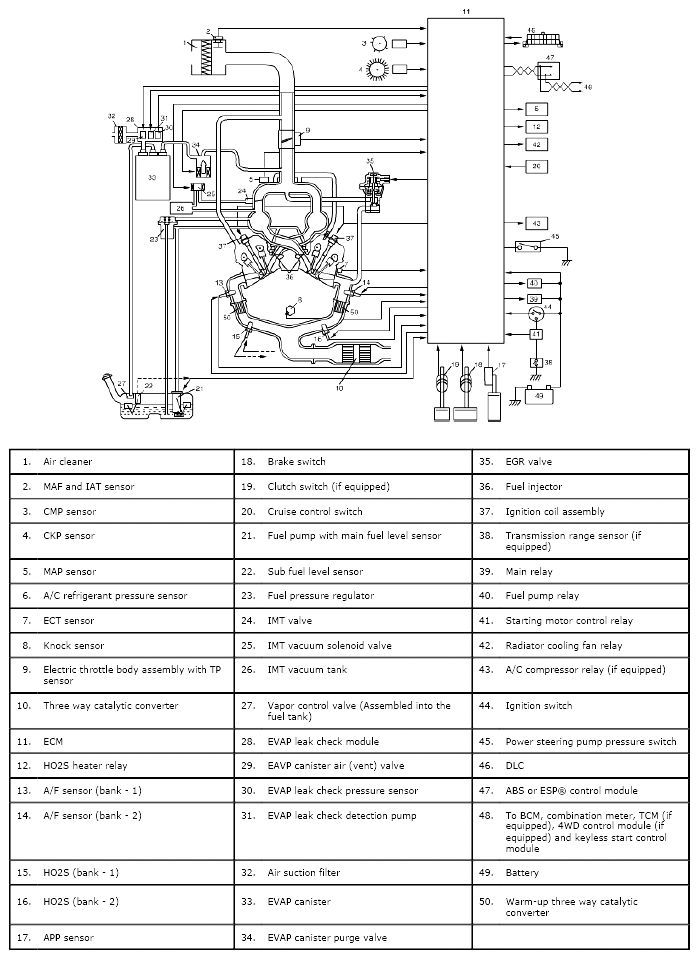

Fig 1: Identifying Engine & Emission Control System Routing Diagram
G04824610Courtesy of SUZUKI OF AMERICA CORP.
