Electronic Control System Location

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

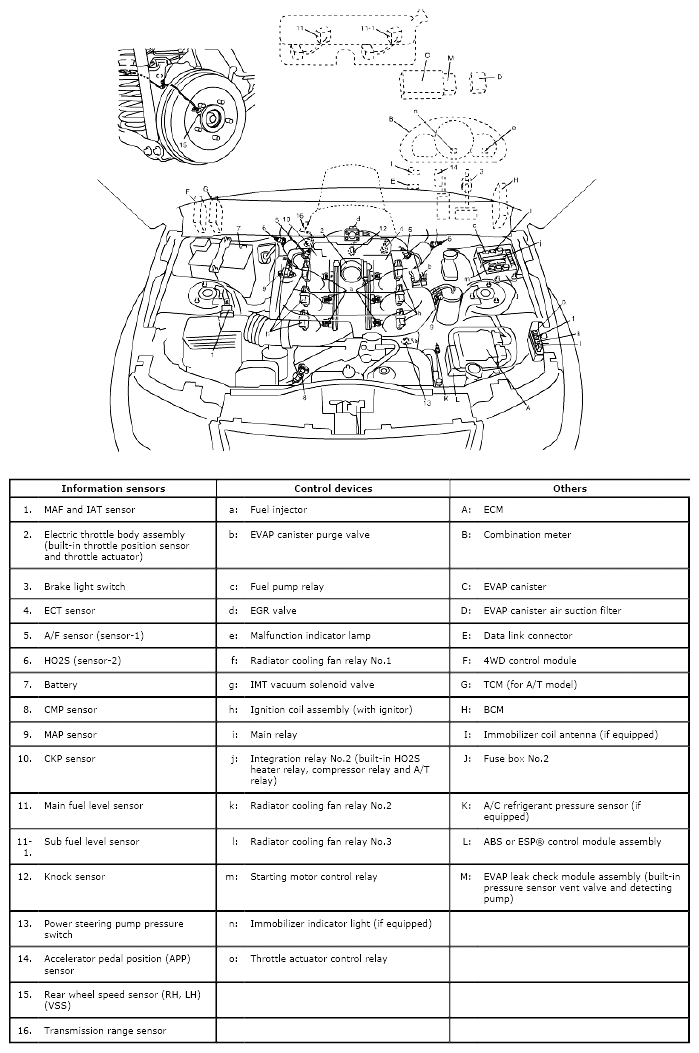

Fig 1: Identifying Electronic Control System Underhood Components
G04824606Courtesy of SUZUKI OF AMERICA CORP.
