System and Wiring Diagram

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

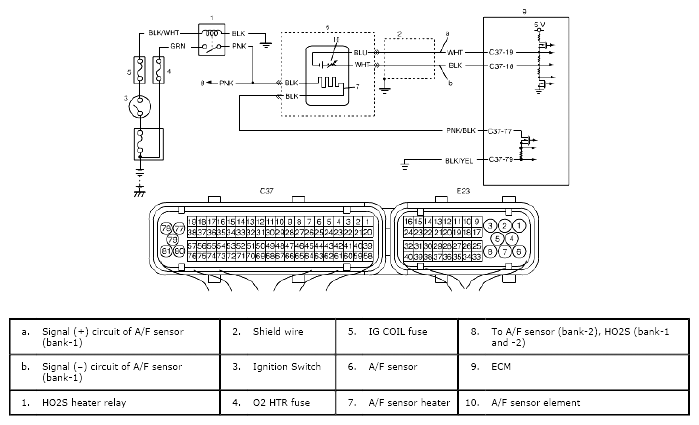

Fig 1: Identifying O2 Sensor Signal Stuck Lean/Stuck Rich (Sensor-1, Bank-1) Wiring Diagram
G04824668Courtesy of SUZUKI OF AMERICA CORP.
