Front Seat Back Recliner Inner Trim Panel Replacement (Fold Flat)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

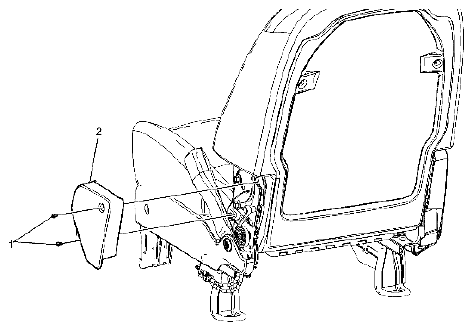

Fig 1: Identifying Front Seat Back Recliner Inner Trim Panel

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
1	Front Seat Inner Recliner Finish Panel Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Front Seat Inner Recliner Finish Panel
