Auxiliary Air Distributor Lower Duct Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

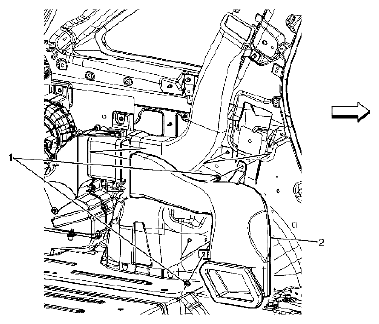

CALLOUT COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . |
|
| 1 | Auxiliary Air Distribution Duct Nuts (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 8 N.m (71 lb in) |
| 2 | Auxiliary Air Distribution Duct |
