PCV Hose Inspection

NOTE: Be sure to check that there is no obstruction in PCV valve or its hoses before checking engine idle speed / IAC duty for obstructed PCV valve or hose hampers its accurate checking.

Check hoses for connection, leakage, clog, and deterioration.

Replace as necessary.

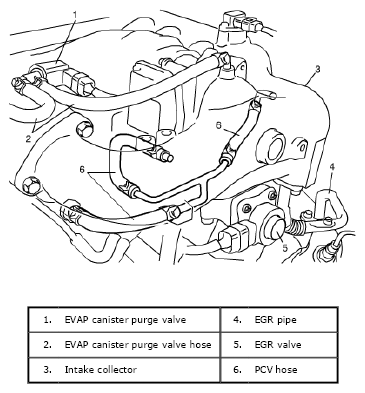

Fig 1: Identifying PCV Hoses
G04807229Courtesy of SUZUKI OF AMERICA CORP.
