Fuel Pump And Its Circuit Check: Wiring Diagram

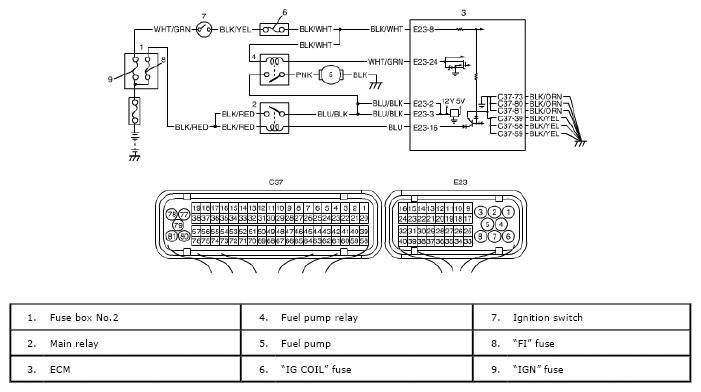

Fig 1: Fuel Pump & Its Circuit Check - Wiring Diagram
G04807168Courtesy of SUZUKI OF AMERICA CORP.
