System Diagram

Special Tool

  1. 09912-58442
  2. 09912-58432
  3. 09912-58490

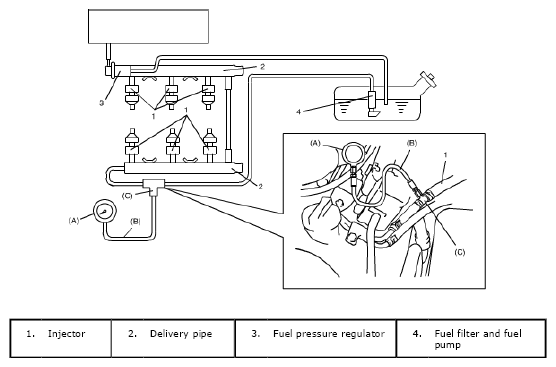

    Fig 1: Fuel Pressure Check - System Diagram
    G04807170Courtesy of SUZUKI OF AMERICA CORP.
