Electric Load Signal Circuit Check: Wiring Diagram

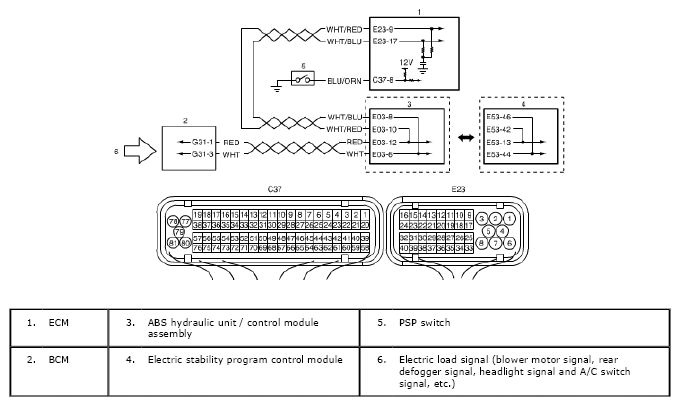

Fig 1: Electric Load Signal Circuit Check - Wiring Diagram
G04807172Courtesy of SUZUKI OF AMERICA CORP.
