DTC P2282: Air Leak Between Throttle Body And Intake Valves Wiring Diagram
>>
Expand image
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Expand image

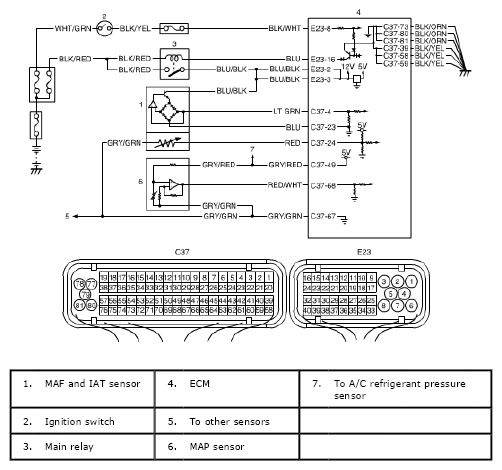

Fig 1: Air Leak Between Throttle Body & Intake Valves - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
