DTC P1422: Evaporative Emission System Leak Detect Pump Stuck Off: Wiring Diagram

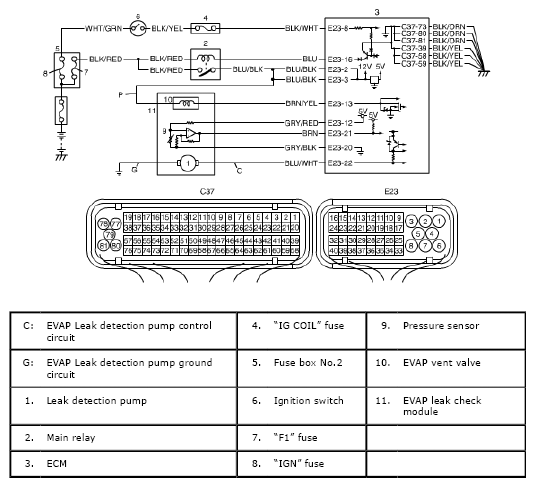

Fig 1: Evaporative Emission System Leak Detect Pump Stuck OFF - Wiring Diagram
G04807109Courtesy of SUZUKI OF AMERICA CORP.
