DTC P1420/P1421: Evaporative Emission System Vent Valve Stuck Open/Closed: Wiring Diagram

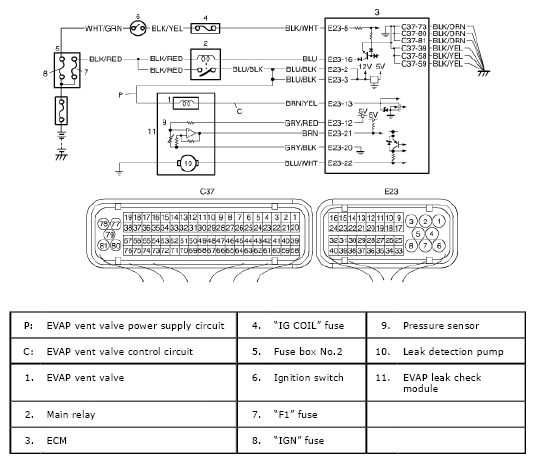

Fig 1: Evaporative Emission System Vent Valve Stuck Open/Closed - Wiring Diagram
G04807107Courtesy of SUZUKI OF AMERICA CORP.
