DTC P0661/P0662: Intake Manifold Tuning Valve Control Circuit Low/High: Wiring Diagram

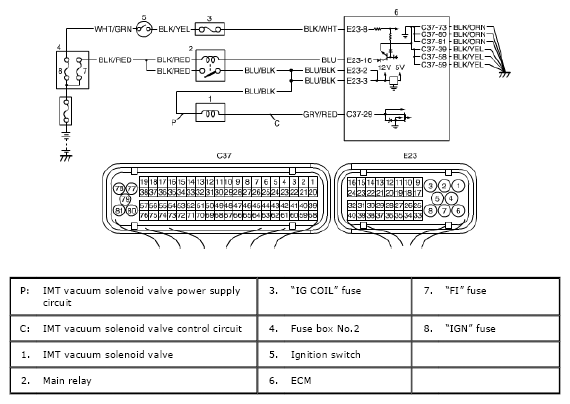

Fig 1: Intake Manifold Tuning Valve Control Circuit Low/High - Wiring Diagram
G04807104Courtesy of SUZUKI OF AMERICA CORP.
