System/Wiring Diagram

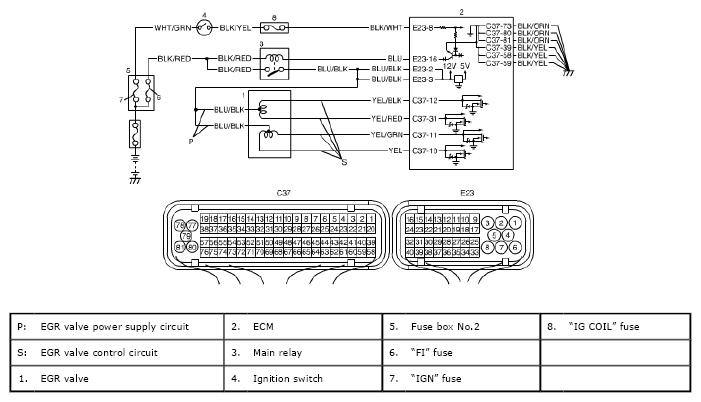

Fig 1: Exhaust Gas Recirculation Flow Insufficient Detected/Excessive Detected - Wiring Diagram
G04807092Courtesy of SUZUKI OF AMERICA CORP.
