DTC P0122/P0123: Throttle Position Sensor (Main) Circuit Low/High Input: Wiring Diagram

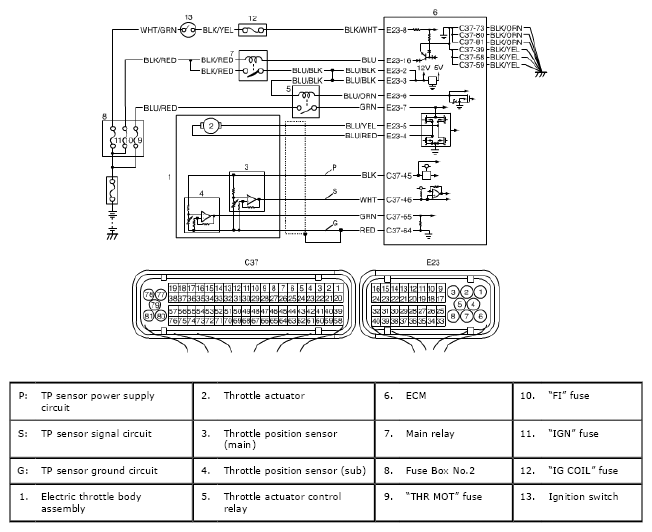

Fig 1: Throttle Position Sensor (Main) Circuit Low/High Input - Wiring Diagram
G04807079Courtesy of SUZUKI OF AMERICA CORP.
