Fuel Pressure Regulator Removal And Installation: Installation

Reference: FUEL PRESSURE REGULATOR INSPECTION

Reverse removal procedure for installation noting the following.

• Replace O-ring with new one using care not to damage it.
• Apply thin coat of fuel to O-ring and then install fuel pressure regulator (1) to delivery pipe.

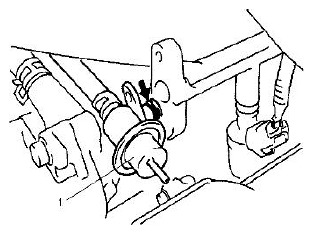

  Fig 1: Identifying Fuel Pressure Regulator

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten fuel pressure regulator bolts to specified torque.

  Tightening torque

  Fuel pressure regulator bolt: 11 N.m (1.1 kg-m, 8.0 lb-ft)

• After installation, with engine OFF and ignition switch ON, check for fuel leaks around fuel line connection.
