Coolant Circulation

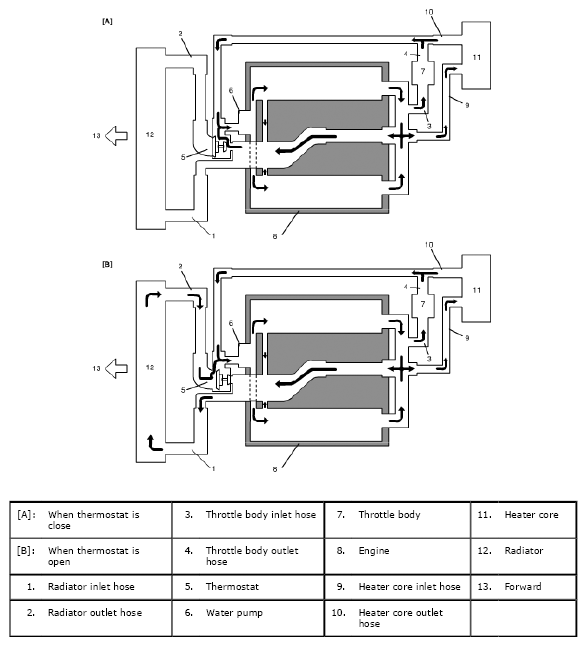

Fig 1: Coolant Circulation Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
