Coolant Level Check

WARNING: To help avoid danger of being burned, do not remove radiator cap while engine and radiator are still hot. Scalding fluid and steam can be blown out under pressure if radiator cap is taken off too soon.

To check level, lift hood and look at "see-through" coolant reservoir.

It is not necessary to remove radiator cap to check coolant level.

When engine is cool, check coolant level in reservoir (1).

A normal coolant level should be between "FULL" mark (2) and "LOW" mark (3) on reservoir (1).

If coolant level is below "LOW" mark (3), remove reservoir cap (4) and add proper coolant to reservoir to bring coolant level up to "FULL" mark (2).

NOTE: If proper quality antifreeze is used, there is no need to add extra inhibitors or additives that claim to improve system. They may be harmful to proper operation of system, and are unnecessary expense.

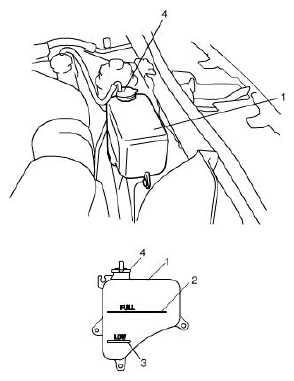

Fig 1: Identifying Coolant Level In Reservoir
G04807564Courtesy of SUZUKI OF AMERICA CORP.
