Information Display (Clock) Removal And Installation: Removal

  1. Remove audio unit referring to AUDIO UNIT REMOVAL AND INSTALLATION .

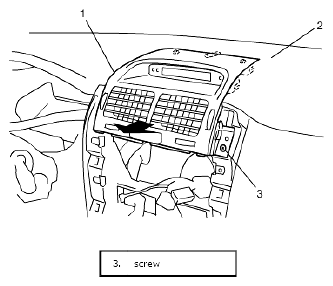

  2. Remove center ventilation louver (1) from instrument panel (2) pulling it arrow direction as shown.
  3. Disconnect hazard switch connector.
    Fig 1: Removing Center Ventilation Louver From Instrument Panel
    G04809784Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove information display (clock) (1) from instrument panel (2) pulling it in arrow direction shown in figure.
  5. Disconnect information display (clock) coupler.
    Fig 2: Removing Information Display (Clock) From Instrument Panel
    G04809785Courtesy of SUZUKI OF AMERICA CORP.
