Propeller Shaft Removal And Installation: Removal

  1. Hoist vehicle.
  2. Give match marks (1) on joint flange and propeller shaft as shown in the figure.

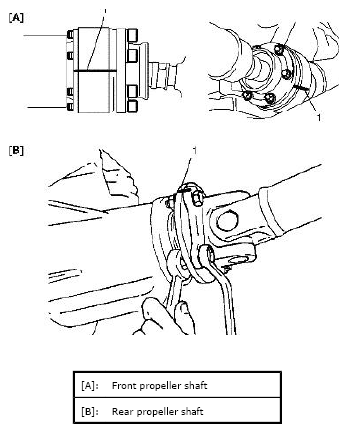

    Fig 1: Identifying Match Marks On Joint Flange & Propeller Shaft
    G04808328Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove rear propeller shaft.
  4. Drain transfer oil when removed front propeller shaft from transfer.
