Front Differential Unit Components

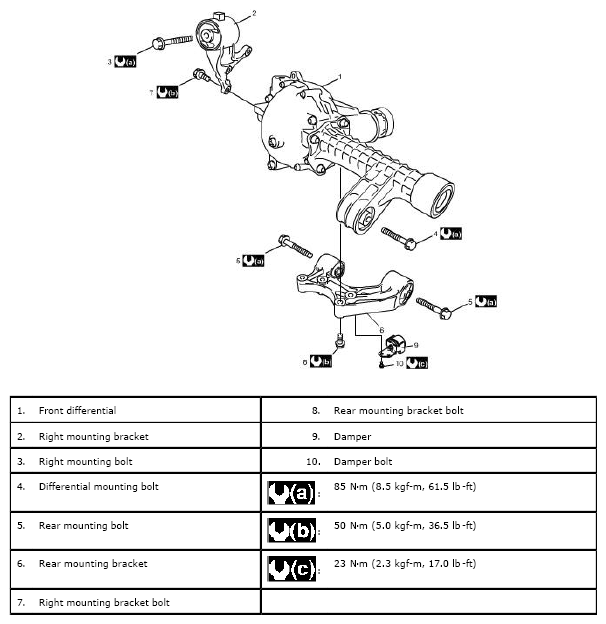

Fig 1: Front Differential Unit Components With Torque Specifications
G04807979Courtesy of SUZUKI OF AMERICA CORP.
