Front Differential Dismounting and Remounting: Dismounting

  1. Lift up vehicle and drain front differential oil.
  2. Remove front drive shafts referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION :Front.
  3. Remove front suspension frame with front differential referring to FRONT SUSPENSION FRAME, STABILIZER BAR AND/OR BUSHINGS REMOVAL AND INSTALLATION .

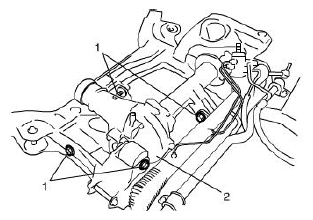

  4. Remove mounting bolts (1), and then take off front differential from front suspension frame (2).
    Fig 1: Identifying Front Suspension Frame & Mounting Bolts
    G04807980Courtesy of SUZUKI OF AMERICA CORP.
