DTC C1057: Abs (Esp®) Control Module Power Supply Circuit Failure: Wiring Diagram

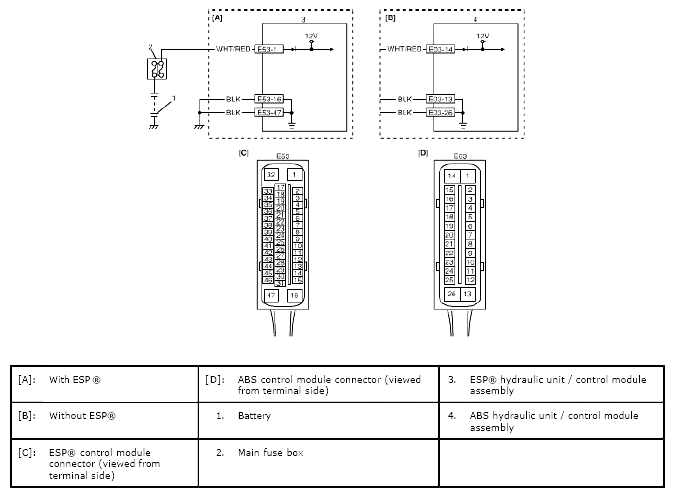

Fig 1: Control Module Power Supply Circuit Diagram
G04808466Courtesy of SUZUKI OF AMERICA CORP.
