Front Disc Brake Components

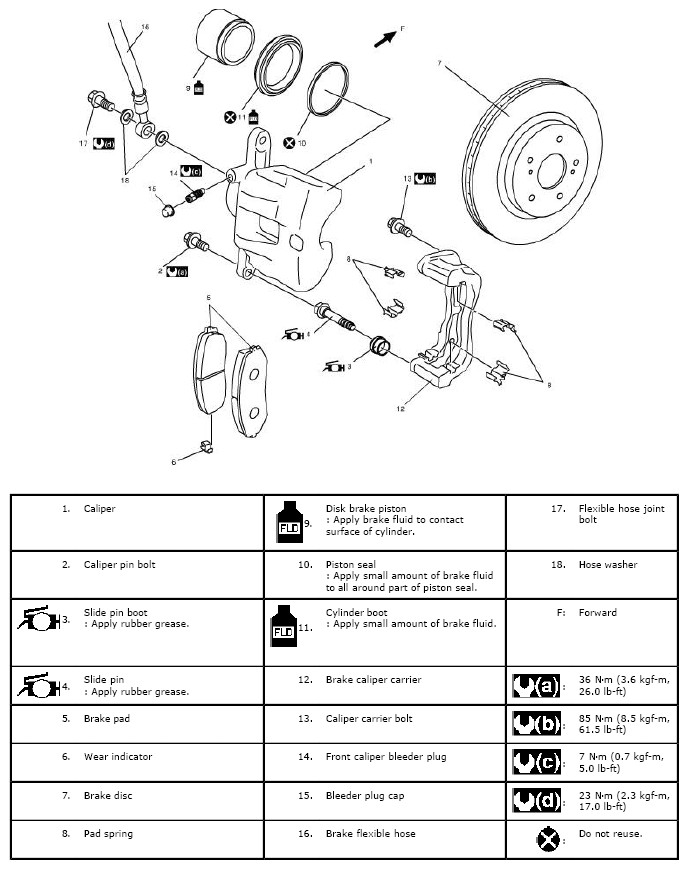

Fig 1: Exploded View Of Front Disc Brake Components With Torque Specifications
G04808384Courtesy of SUZUKI OF AMERICA CORP.
