Sun Roof Assembly Removal And Installation: Installation

For installation, reverse removal procedure, noting the following points.

• Connect drain hoses (1) to sun roof assembly at 4 locations. Clamp drain hose by each clamp securely.
• Pass rear drain hose between rib of outlet ventilator (2).

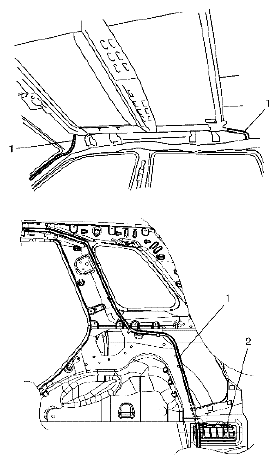

  Fig 1: Identifying Rear Drain Hose Between Rib Of Outlet Ventilator

  Courtesy of SUZUKI OF AMERICA CORP.
• Initialize sun roof position data referring to Owner's Manual.
• After reinstalling sun roof assembly, be sure to make glass adjustment. Refer to SUN ROOF GLASS ADJUSTMENT .
