Sun Roof Assembly Components

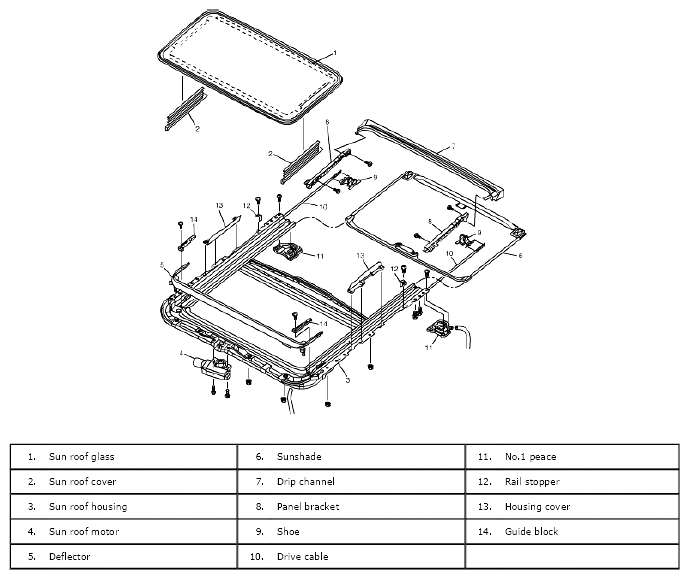

Fig 1: Identifying Sun Roof Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
