Rear Door Glass Removal and Installation: Removal

Remove door trim screw cover (1).
Remove door trim screw (2).

Fig 1: Identifying Door Trim Screw Cover & Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove door trim (1).

Fig 2: Identifying Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover (1).

Fig 3: Identifying Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.

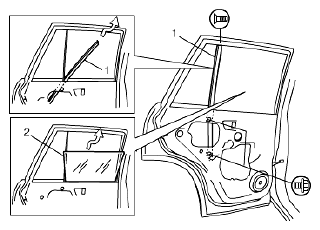

Detach rear part of glass run from door sash (1), and remove door sash (1).
Remove door glass (2).

Fig 4: Identifying Door Glass & Door Sash
Courtesy of SUZUKI OF AMERICA CORP.
