Front Door Glass Removal and Installation: Removal

Remove door mirror trim (1) and door trim screw cover (2).
Remove door trim screw (3).
Remove door trim (4).
And disconnect power window switch lead wire and door illumination lamp lead wire at coupler.

Fig 1: Identifying Front Door Mirror Trim, Front Door Trim Screw Cover, Front Door Trim Screw & Front Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover (1).

Fig 2: Identifying Front Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove door glass mounting screws (1).
Remove door glass (2) while tilting it.

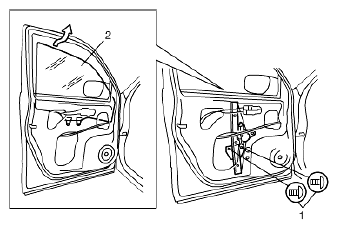

Fig 3: Identifying Front Door Glass & Mounting Screws
Courtesy of SUZUKI OF AMERICA CORP.
