Immobilizer Control Module (ICM) Removal And Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Disable air bag system. Refer to AIR BAG SYSTEM .
  3. Remove driver air bag (inflator) module. Refer to AIR BAG SYSTEM .
  4. Remove steering wheel referring to STEERING WHEEL REMOVAL AND INSTALLATION .
  5. Remove steering column lower and upper covers.
  6. Remove engine start knob (1) if equipped with keyless start system.
    Fig 1: Identifying Engine Start Knob
    G04810048
  7. Disconnect connector (1) from ICM (2).
  8. Remove a screw (3) from ICM.

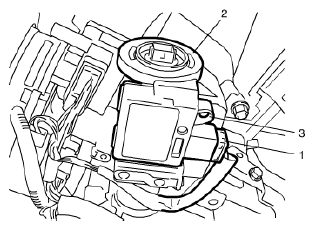

    Fig 2: Identifying ICM With Screw And Connector
    G04810049
  9. Remove ICM from steering lock assembly or steering lock unit.
    NOTE: The antenna part of ICM is fragile. Therefore, do not add strong power to the part or twist the part.
