Front Structure Panel

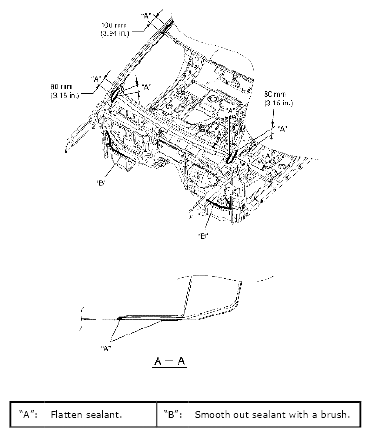

Fig 1: Identifying Sealant Application Areas - Front Structure Panel
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
