Power Door Lock Actuator Inspection (If Equipped)

NOTE: If rear end door is closed and the rear end door lock actuator does not function in unlock position, follows the procedures to unlock the rear end door lock actuator.

Remove cap (1).
Penetrate door sealing cover (2) by jack lever (3) or whatever to insert jack lever, and push emergency lever (4) into unlock position "a".

Fig 1: Pushing Emergency Lever Into Unlock Position A
Courtesy of SUZUKI OF AMERICA CORP.
After inspection replace door sealing cover.

Remove door trim from door panel.
Disconnect power door lock actuator coupler.
Connect battery positive (+) and negative (-) terminals to the door lock actuator terminals (a, b, c, d) as shown in figure.
If it does not operate as specified in the following table, replace door lock assembly.

For front door

Fig 2: Identifying Door Lock Actuator Terminals - For Front Door
Courtesy of SUZUKI OF AMERICA CORP.

For rear door

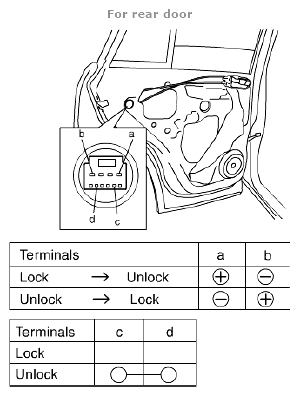

Fig 3: Identifying Door Lock Actuator Terminals - For Rear Door
Courtesy of SUZUKI OF AMERICA CORP.

For rear end door

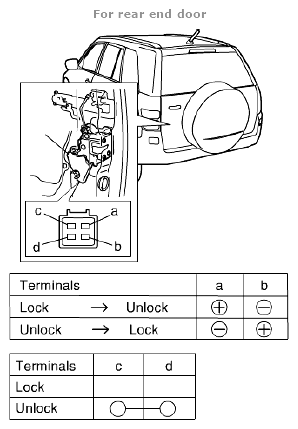

Fig 4: Identifying Door Lock Actuator Terminals - For Rear End Door
Courtesy of SUZUKI OF AMERICA CORP.
