E Connector

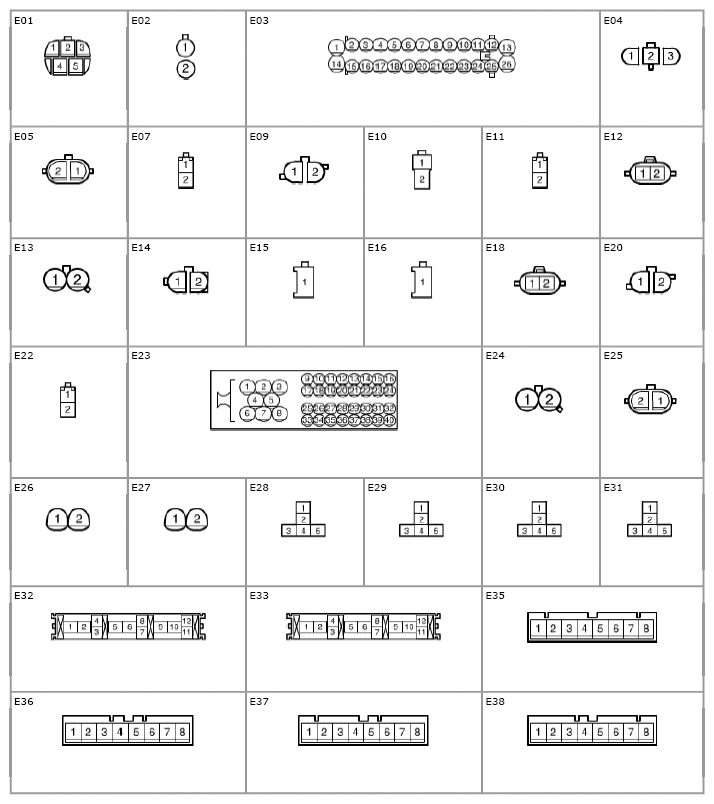

Fig 1: E Connector Chart (1 Of 3)
G04839241Courtesy of SUZUKI OF AMERICA CORP.

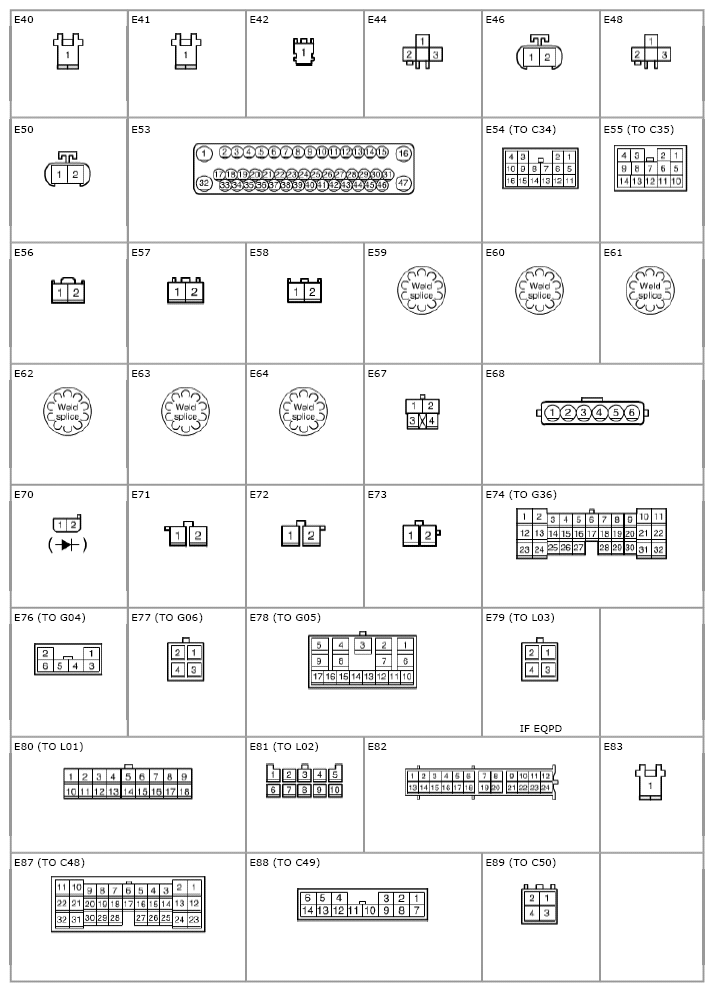

Fig 2: E Connector Chart (2 Of 3)
G04839242Courtesy of SUZUKI OF AMERICA CORP.

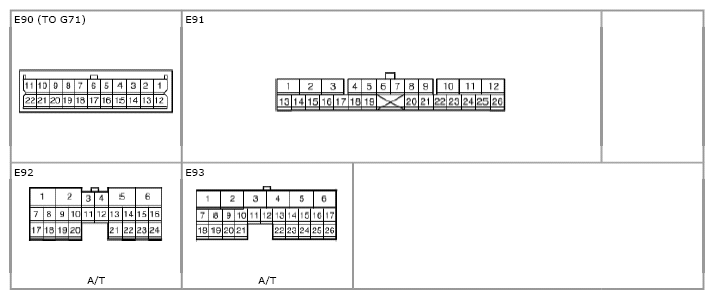

Fig 3: E Connector Chart (3 Of 3)
G04839243Courtesy of SUZUKI OF AMERICA CORP.
