Fuel Tank Inlet Valve Removal And Installation: Installation

Reference: FUEL TANK INLET VALVE INSPECTION

1. Install fuel tank inlet valves (1) to fuel filler neck (3) and fuel tank (2).

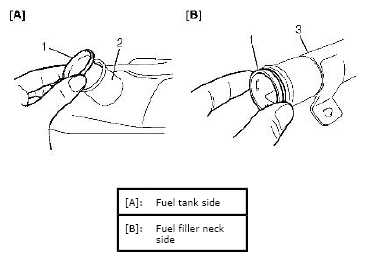

   Fig 1: Installing Fuel Tank Inlet Valve To Fuel Filler Neck & Fuel Tank

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install fuel filler hose (1) to fuel filler neck and fuel tank and secure it with clamps (2).

   For proper installation, refer to FUEL HOSE DISCONNECTING AND RECONNECTING

   Tightening torque

   Fuel filler hose clamp a: 4 N.m (0.4 kg-m, 3.0 lb-ft)

   Fig 2: Identifying Fuel Filler Hose & Fuel Filler Hose Clamp

   Courtesy of SUZUKI OF AMERICA CORP.
3. Lower vehicle and install fuel filler cap.
