Fuel Pressure Regulator Removal And Installation: Removal

  1. Relieve fuel pressure according to FUEL PRESSURE REGULATOR INSPECTION
  2. Disconnect negative (-) cable at battery.
  3. Remove surge tank cover.
  4. Disconnect vacuum hose (1) from fuel pressure regulator.

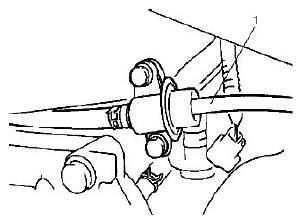

    Fig 1: Identifying Vacuum Hose
    G04807604Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove fuel pressure regulator (1) from delivery pipe (3).
  6. Disconnect fuel return hose (2) from fuel pressure regulator (1).

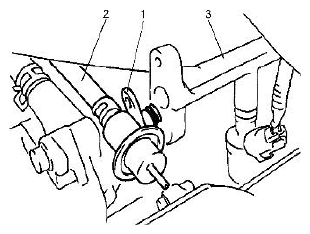

    Fig 2: Identifying Fuel Pressure Regulator, Delivery Pipe & Fuel Return Hose
    G04807605Courtesy of SUZUKI OF AMERICA CORP.
