Oil Pan And Oil Pump Strainer Components

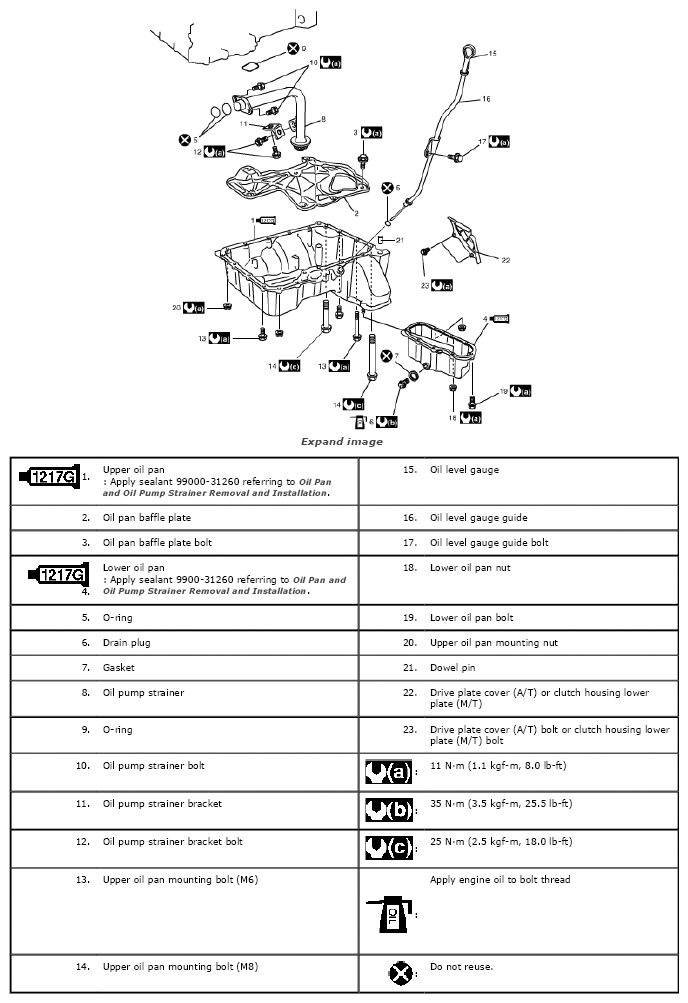

Fig 1: Oil Pan & Oil Pump Strainer Replacement Components With Torque Specifications
G04807536Courtesy of SUZUKI OF AMERICA CORP.
