The other than fuel tank system

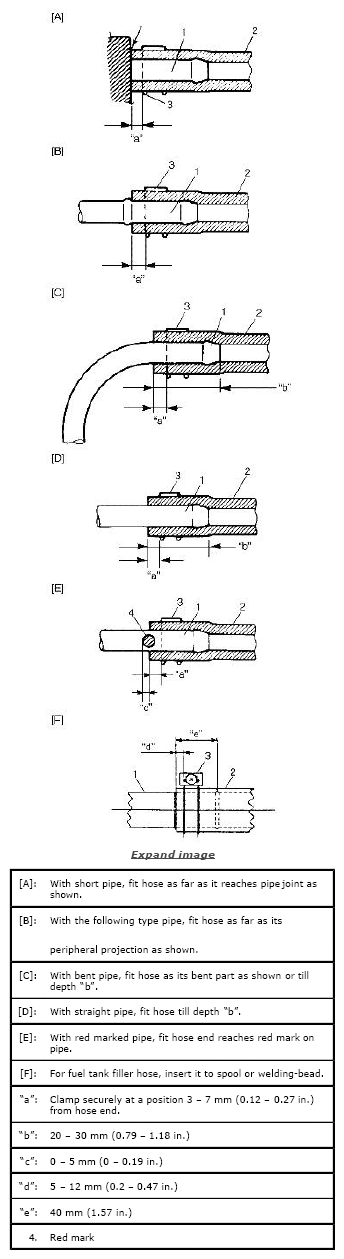

Fig 1: Fuel Tank Hoses/Pipes
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
