Fuse Box No. 3 (In J/B)

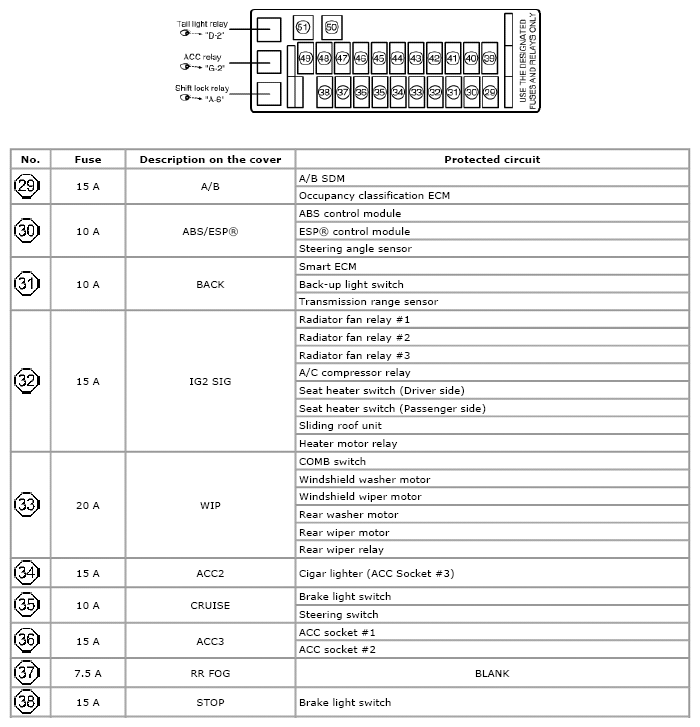

Fig 1: Tail Light Relay And Shift Lock Relay Circuit Diagram
G04839229Courtesy of SUZUKI OF AMERICA CORP.

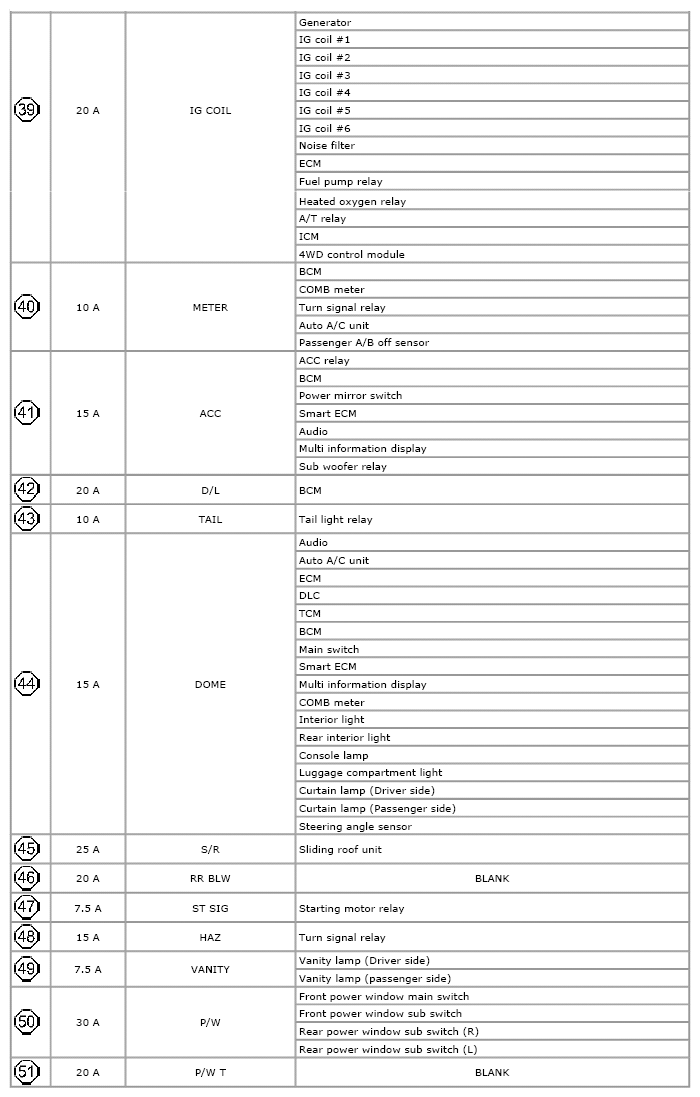

Fig 2: Fuse Box Chart
G04839230Courtesy of SUZUKI OF AMERICA CORP.
