2006
>>
Grand Vitara Premium, RWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
Body Electrical Control System
>>
Schematic And Routing Diagram
>>
Connector Layout Diagram Of BCM
>>
BCM connectors (viewed from harness side)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BCM connectors (viewed from harness side)

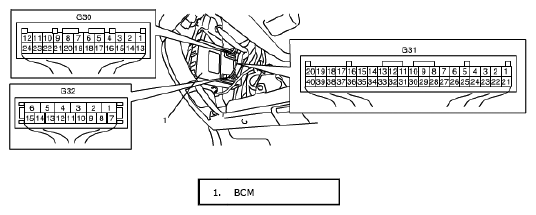

Fig 1: Identifying BCM Connector Terminal
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
