DTC U1144 (No. 1144): Lost Communication With Keyless Start Control Module: Wiring Diagram

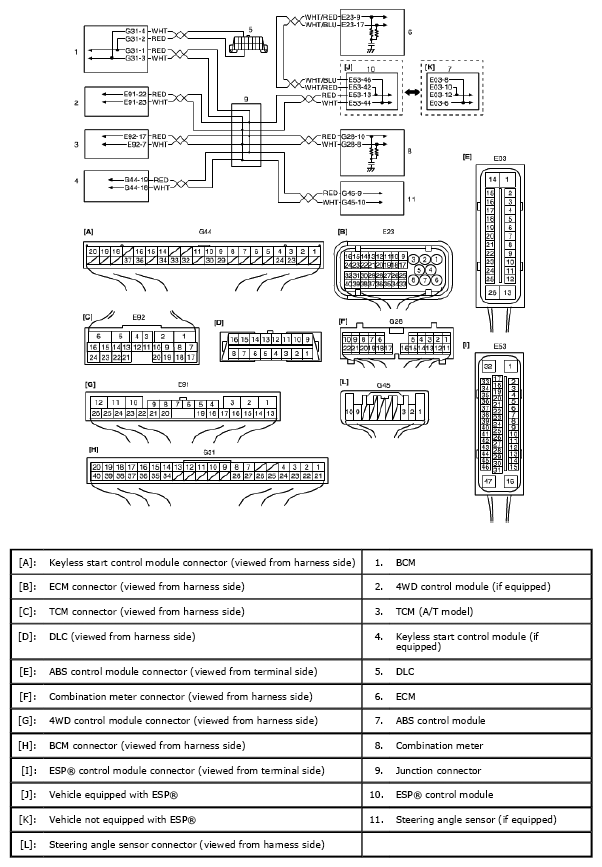

Fig 1: Lost Communication With Keyless Start Control Module - Wiring Diagram
G04810021Courtesy of SUZUKI OF AMERICA CORP.
