Passenger Compartment

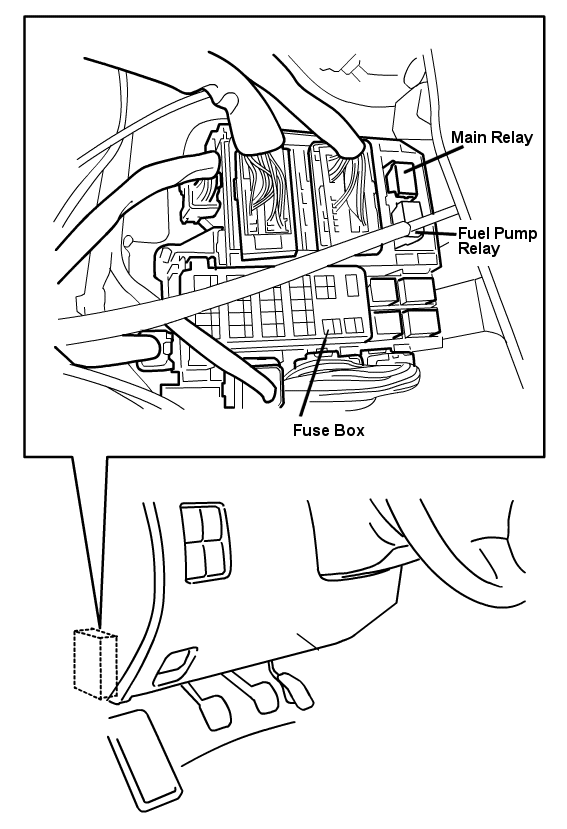

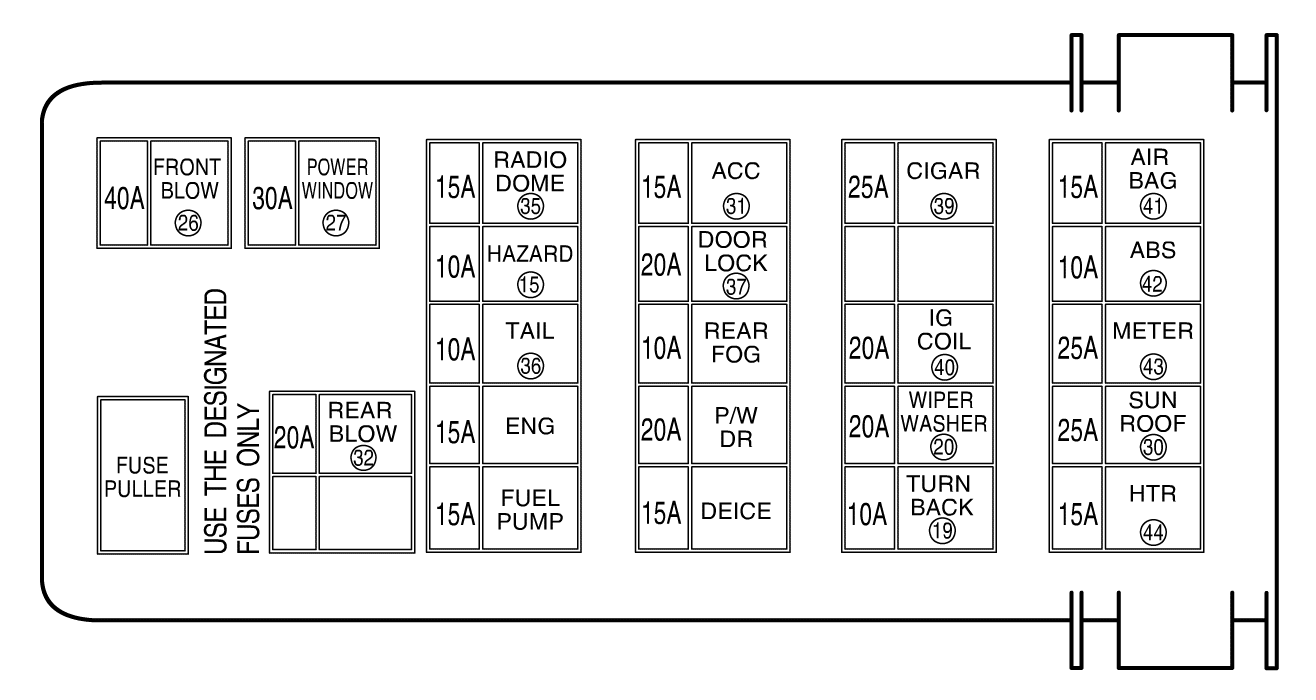

Passenger Compartment Fuse/Relay Assignments
| Fuse No. | Amperage | Description On Fuse Box Cover | Protected Circuit |
|---|---|---|---|
| 15 | 10 A | HAZARD | Turn signal light relay & answerback relay |
| 19 | 10 A | TURN BACK | Transaxle range sensor |
| -- | -- | -- | Turn signal light relay & answerback relay |
| -- | -- | -- | Back-up light switch |
| 20 | 20 A | WIPER WASHER | Combination switch |
| -- | -- | -- | Wiper motor (front) |
| -- | -- | -- | Wiper motor (rear) |
| -- | -- | -- | Wiper relay |
| 26 | 40 A | FRONT BLOWER | Blower motor relay |
| 27 | 20 A | P/W | Power window and door lock switch |
| -- | -- | -- | Power window sub switch |
| -- | -- | -- | Power window sub switch rear (RH) |
| -- | -- | -- | Power window sub switch rear (LH) |
| 30 | 25 A | SUN ROOF | Sliding roof |
| 31 | 15 A | ACC | ACC relay |
| 32 | 20 A | REAR BLOWER | Rear fan relay |
| 35 | 15 A | RADIO/DOME | Keyless controller |
| -- | -- | -- | Data link connector |
| -- | -- | -- | Spot light |
| -- | -- | -- | Room light (center) |
| -- | -- | -- | Room light (rear) |
| -- | -- | -- | Auto A/C controller |
| -- | -- | -- | Radio |
| -- | -- | -- | Combination meter |
| -- | -- | -- | ECM/PCM |
| 36 | 10 A | TAIL | Headlight relay #2 |
| 37 | 20 A | DOOR LOCK | BCM |
| 39 | 25 A | CIGAR | Mirror switch |
| -- | -- | -- | Radio |
| -- | -- | -- | Cigar lighter |
| -- | -- | -- | BCM |
| -- | -- | -- | ACC relay |
| 40 | 20 A | IG COIL | Generator |
| -- | -- | -- | O2 heater relay |
| -- | -- | -- | Fuel pump relay |
| -- | -- | -- | ECM/PCM |
| 41 | 15 A | AIR BAG | A/B control module |
| 42 | 10 A | ABS | ABS control module |
| -- | -- | -- | G sensor |
| 43 | 10 A | METER | BCM |
| -- | -- | -- | Auto A/C controller |
| -- | -- | -- | Fan actuator |
| -- | -- | -- | Combination meter |
| -- | -- | -- | Combination switch volume and cruise main switch |
| 44 | 15 A | HEATER | Rear defogger relay |
| -- | -- | -- | BCM |
| -- | -- | -- | Seat heater switch (D/S) |
| -- | -- | -- | Seat heater switch (P/S) |
| -- | -- | -- | Mirror heater switch |
| -- | -- | -- | Condenser fan relay |
| -- | -- | -- | Compressor relay |
| -- | -- | -- | Condenser high fan relay #1 |
| -- | -- | -- | Condenser high fan relay #2 |
| -- | -- | -- | Blower motor relay |
| -- | -- | -- | Rear fan relay |
