Grand Vitara Premium, RWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
Brakes - Abs
>>
Schematic And Routing Diagram
>>
Abs Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Abs Schematic

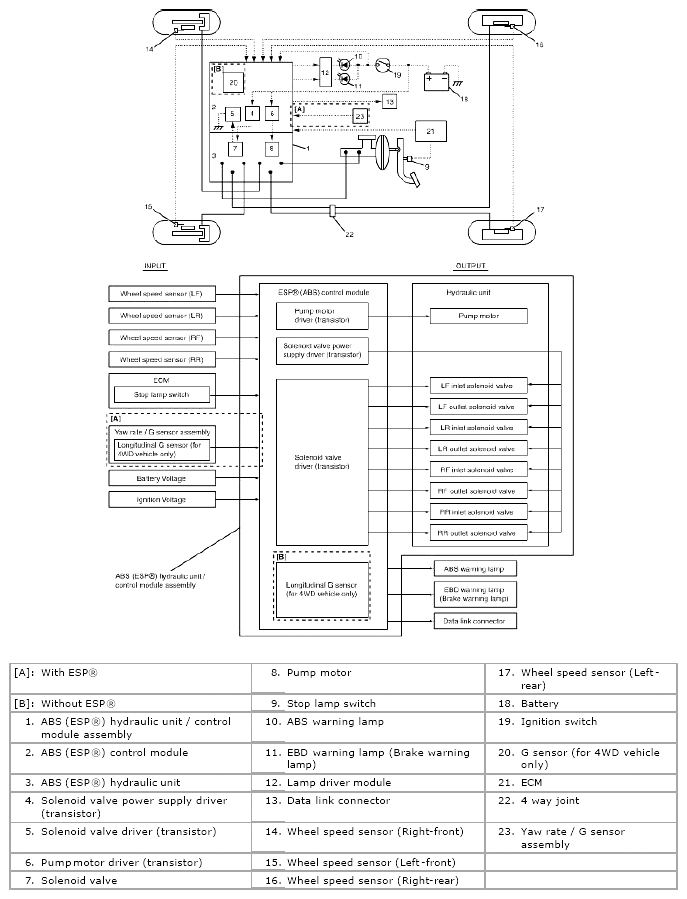

Fig 1: ABS Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
