EBD Warning Lamp (Brake Warning Lamp) Comes On Steady: Wiring Diagram

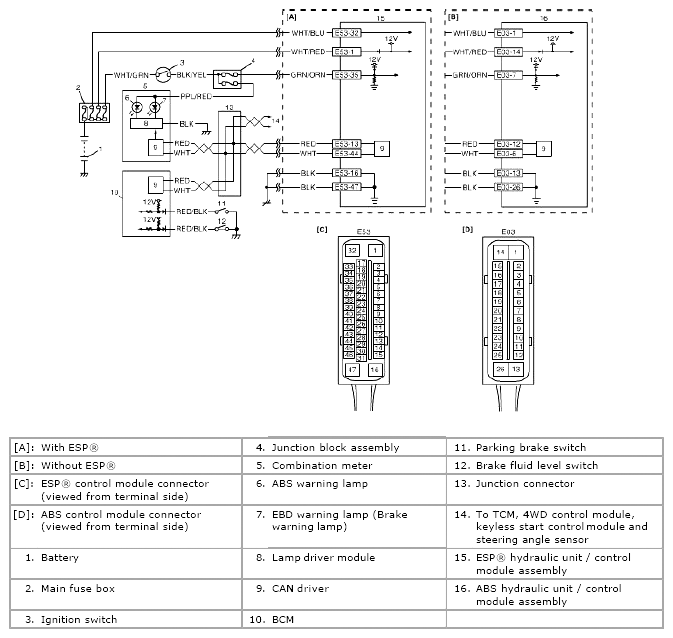

Fig 1: EBD Warning Lamp - Wiring Diagram
G04808460Courtesy of SUZUKI OF AMERICA CORP.
