Parking Brake Lever Removal And Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Block vehicle wheels and release parking brake lever.
  3. Remove console box.
  4. Disconnect lead wire of parking brake switch at coupler.
  5. Remove parking brake cable adjusting nut (1).

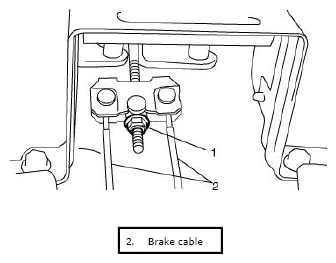

    Fig 1: Identifying Parking Brake Cable Adjusting Nut And Cable
    G04808444Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove parking brake lever bolts (4) and then remove parking brake lever assembly (1) from equalizer (3).
  7. Remove equalizer (3) from parking brake cable (2).
    NOTE: Don't disassemble parking brake lever switch. It must be removed and installed as a complete switch assembly.
    Fig 2: Identifying Parking Brake Lever Bolts And Parking Brake Cable
    G04808445Courtesy of SUZUKI OF AMERICA CORP.
