Wheel Cylinder Removal And Installation: Removal

  1. Remove brake drum referring to REAR BRAKE DRUM REMOVAL AND INSTALLATION .
  2. Remove brake shoe referring to REAR BRAKE SHOE REMOVAL AND INSTALLATION .
  3. Loosen brake pipe flare nut (1) but only within the extent that fluid does not leak.
  4. Remove wheel cylinder mounting bolts (2). Disconnect brake pipe from wheel cylinder and put wheel cylinder bleeder plug cap (3) onto pipe to prevent fluid from spilling.

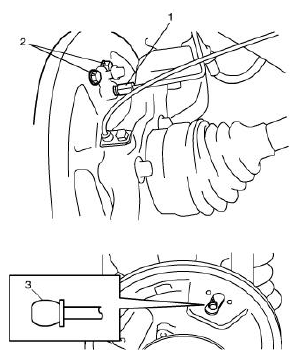

    Fig 1: Identifying Wheel Cylinder Mounting Bolts With Bleeder Plug Cap
    G04808431Courtesy of SUZUKI OF AMERICA CORP.
