Rear Brake Shoe Removal And Installation: Installation

Reference: REAR BRAKE SHOE INSPECTION

1. Assemble parts in reverse order of removal procedure.
2. Before install brake shoe, be sure to fully turn brake adjuster to reduce.
3. Install shoe hold down springs (1) by pushing them down in place and turning hold down pins (2).
   Fig 1: Identifying Springs & Down Pins

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install brake adjuster (2) and upper shoe return spring (1).
5. Install adjuster pawl lever (3) and adjuster spring.

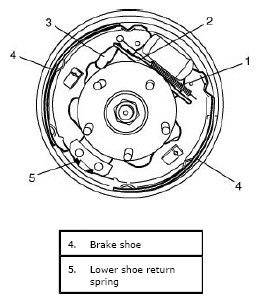

   Fig 2: Identifying Brake Adjuster & Upper Shoe Return Spring

   Courtesy of SUZUKI OF AMERICA CORP.
6. For procedure hereafter, refer to REAR BRAKE DRUM REMOVAL AND INSTALLATION .
