Rear Brake Drum Removal And Installation: Removal

  1. Hoist vehicle and remove rear wheel.
  2. Release parking brake lever.
  3. Remove rear console box and loosen parking brake cable adjusting nut (1).

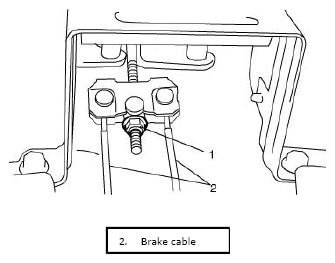

    Fig 1: Identifying Parking Brake Cable Adjusting Nut
    G04808414Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove brake drum (1) by using 8 mm bolts (2) (2 pcs).
    Fig 2: Identifying Brake Drum Bolts
    G04808415Courtesy of SUZUKI OF AMERICA CORP.
