Brake Pedal Free Height Adjustment
Measure brake pedal free height between pedal and carpet installed on dash panel.
If the measurement is not within the specification, check the position of booster push rod clevis and/or brake light switch, referring to, MASTER CYLINDER ASSEMBLY INSPECTION , BOOSTER PUSH ROD CLEVIS ADJUSTMENT and/or BRAKE LIGHT SWITCH ADJUSTMENT . The free height varies depending on installation position of booster push rod clevis and stop light switch.

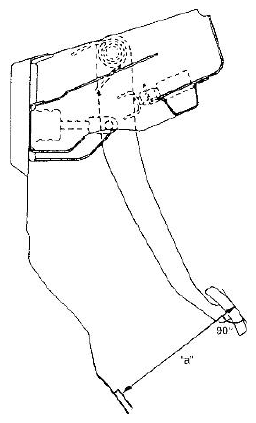

Brake pedal free height "a" from carpet
"a": 131 - 141 mm (5.16 - 5.55 in.)
