Front Brake Hose/Pipe Construction

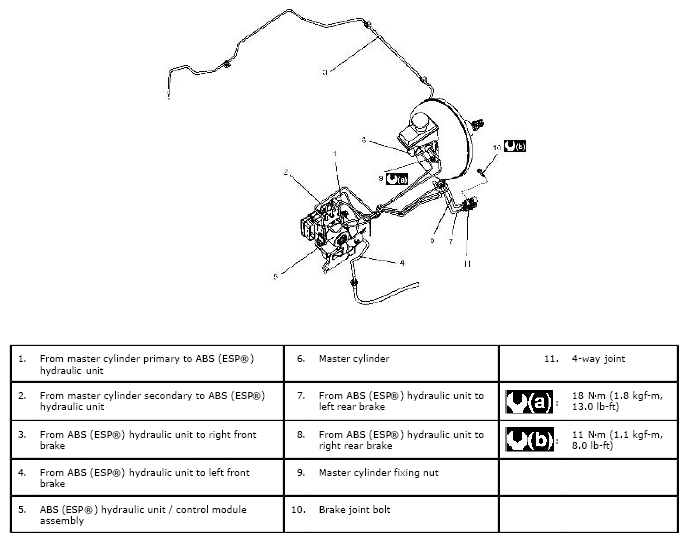

Fig 1: Front Brake Hoses & Pipes With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
