DTC C1050: Back Switch Failure
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC C1050: Back Switch Failure: Wiring Diagram

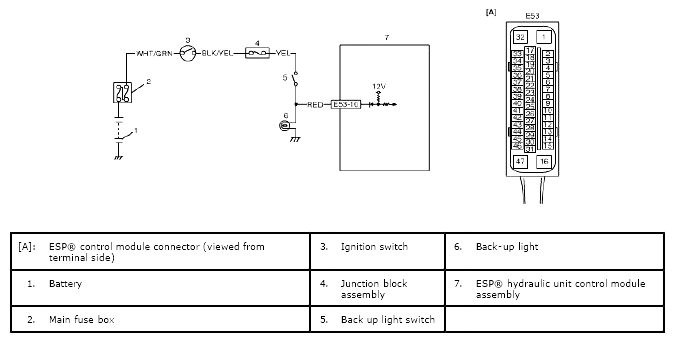

Fig 1: Back Switch Failure - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
